Bus Assembly Line Case Study

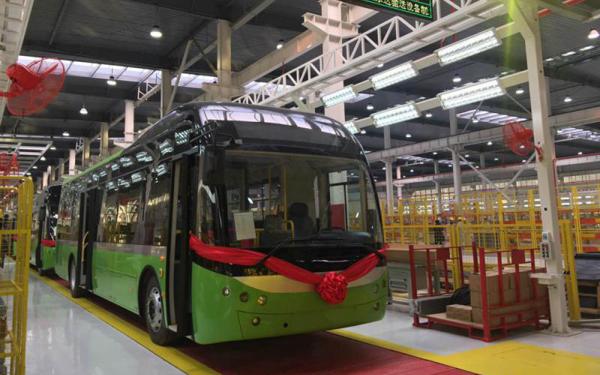

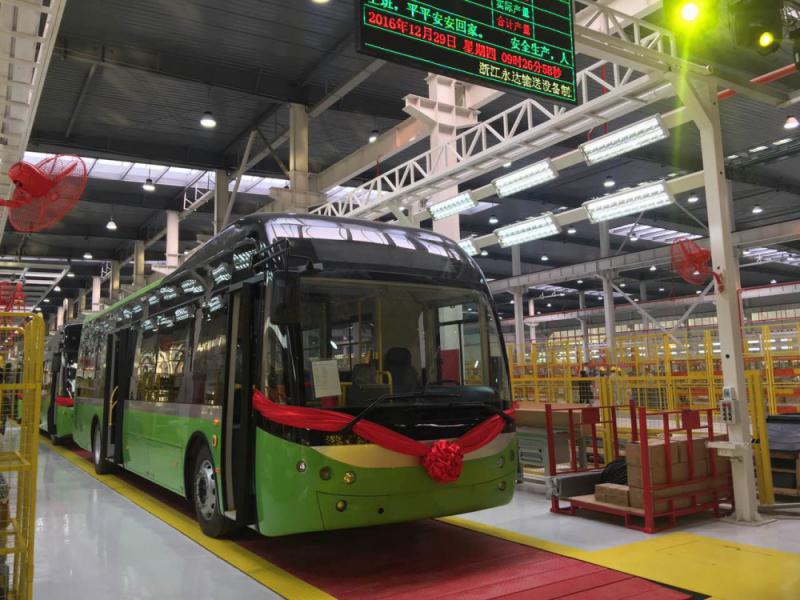

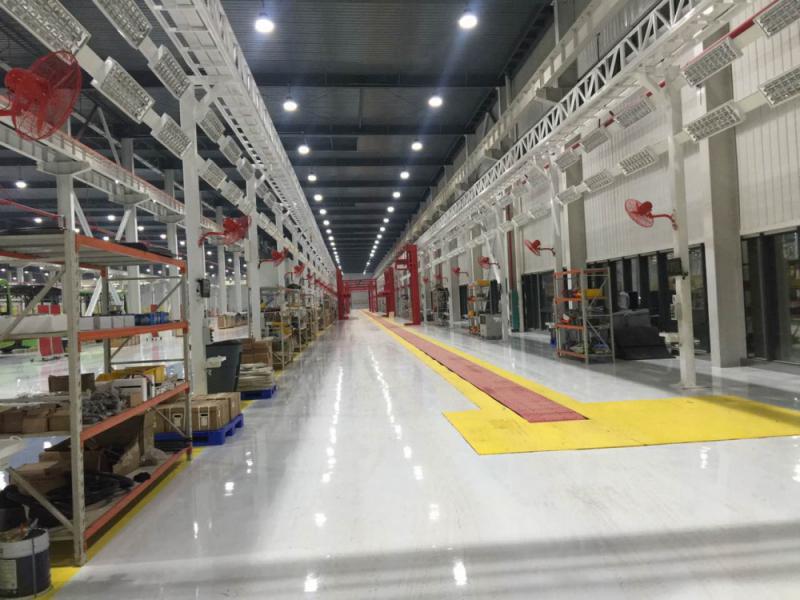

This is an assembly line JDSK provided for a coach manufacturer in Guangxi. The following is the bus final assembly line’s basic information.
| Item | Specification |
| Conveyor form | Slat conveyor |
| Operation mode | Stepping operation |
| Assembling interval | 1-120min adjustable |
| Number of the work stations | 12 |
| Spacing of the work stations | 14m |
| Total length of the conveying line | 169m |
| Effective width of the conveying line | 700mm |
| Height of the conveying line | |
| Pitch of the conveying chains | 315mm |
| Pitch diameter of drag chain sprockets | |
| Operating speed | 2-8m/min |
| Drive power | 16KW |
| Start and stop mode | Soft start and soft stop |
| Item | Specification |
| Length(mm) | 74000 |
| Width(mm) | 2100 |
| Operation mode | Stepping operation |
| Spacing of the work stations(mm) | 9500 |
| Item | Specification |
| Total length(m) | 112 |
| Spacing of the work stations(mm) | 9500 |
| Effective number of the work stations | 4 |
Automotive production is a sophisticated process involving production equipment with thousands of components working in harmony to create products that are equally complicated. Zhejiang Jingdian Numerical Control Equipment Company is here to simplify the entire automotive production process by offering comprehensive manufacturing line solutions. We have over 20 years of experience in the design and production of equipment used for the manufacturing of automotive and construction vehicles. We install complete sets of equipment in customer workshops including assembly and fabrication lines, painting lines, welding lines, and testing lines.
