Pickup Truck Manufacturing Assembly Line Case Study
This is a customized pickup truck manufacturing assembly line that JDSK provided to a customer in Hubei. The line is used for assembling pickup trucks and other body-on-frame vehicles.
- Double slat chain conveyor
- Cab trim line
- Cab assembly line
- Engine assembly line
- Electric control system
- Chassis line

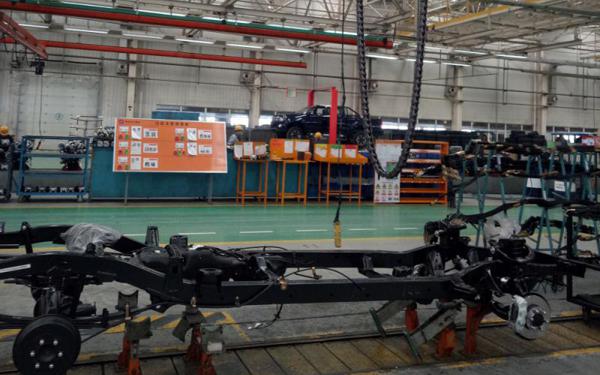

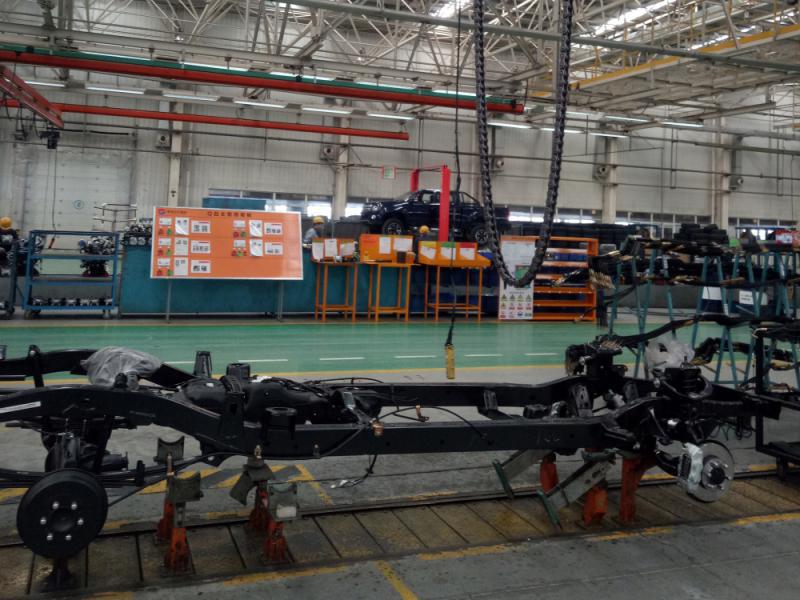

With the ground chain conveyor system, the assembly line will install both front and back suspensions, axle, and drive shafts to complete the chassis turnover process. The next step is installation of cable harnesses, power steering system, engine, automatic transmission, transmission shaft, radiator, muffler, exhaust pipes, fuel tank and everything else.
- Cab trim line

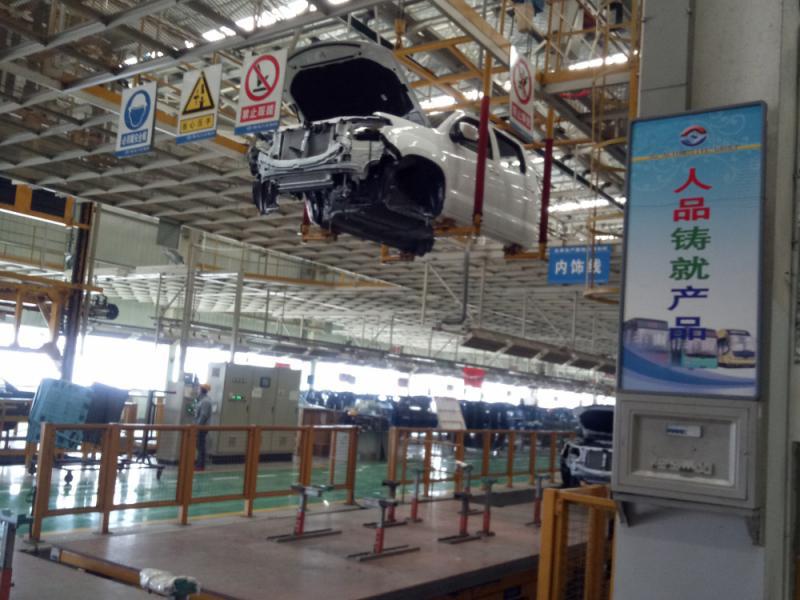

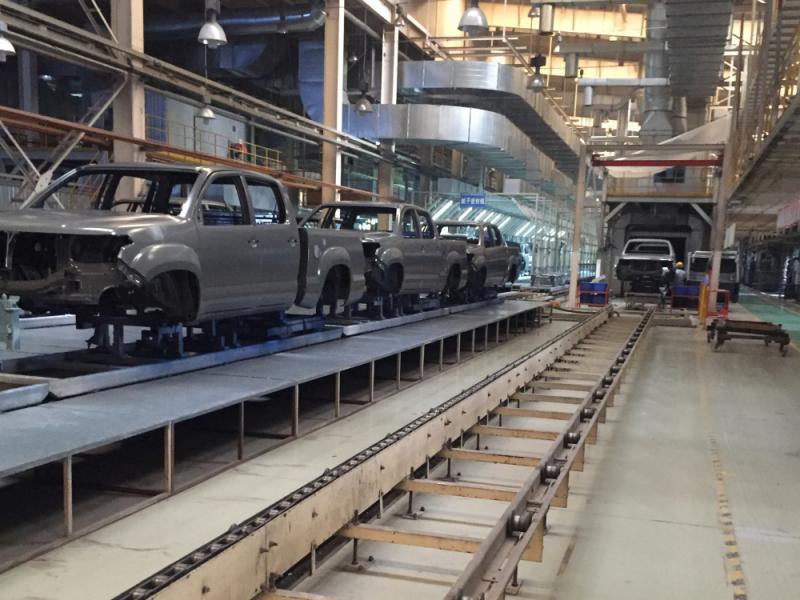

With the slat conveyor line, the line will complete cab trim assembly, including the installation of the windscreen, circuit, trim material, car dashboard, and other components.
- Final assembly line

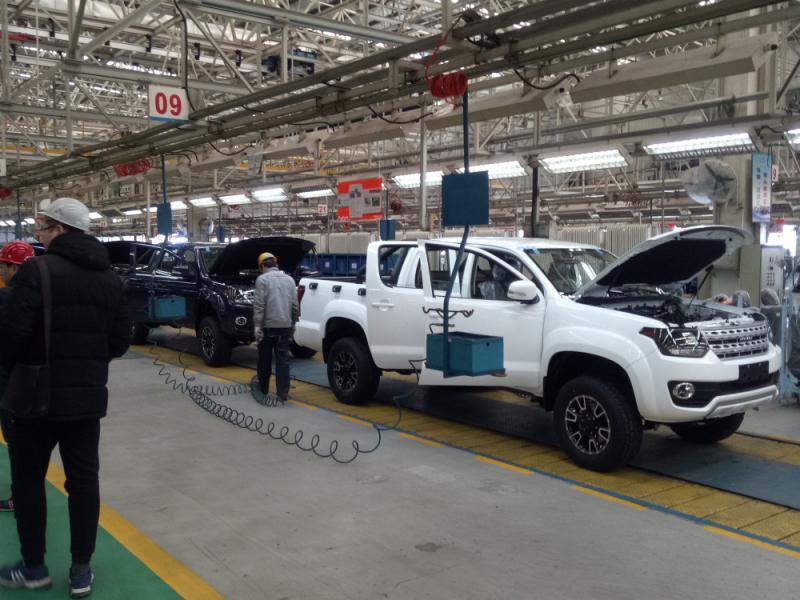

With the dual slat conveyor line, this line completes final assembly.
Automotive production is a sophisticated process involving production equipment with thousands of components working in harmony to create products that are equally complicated. Zhejiang Jingdian Numerical Control Equipment Company is here to simplify the entire automotive production process by offering comprehensive manufacturing line solutions. We have over 20 years of experience in the design and production of equipment used for the manufacturing of automotive and construction vehicles. We install complete sets of equipment in customer workshops including assembly and fabrication lines, painting lines, welding lines, and testing lines.
